6-ft (1.8-m) power cord, control cables, bridge with gasket and thumbscrews, 8mm and 12mm hose barbs with clamps for external circulation.
Key Features
Microprocessor PID controller for fast and precise temperature control
Large selection of bath sizes to meet your application requirements
Control head can be indexed 90° left or right for easy viewing
3 year warranty
More About this Item
Advanced controller with large (71 x 39 mm) bright LCD for easy operation and more precise temperature control. Unit features five preset temperature points, and acoustic and optical alarms. High-temperature and low-level cutoff protects your samples and equipment from damage. Efficient refrigeration system provides substantial energy savings while allowing you to block two sides of the unit with no loss in performance. Recessed handles for easier movement of the unit.The powerful three-speed force/suction pump has enough capacity for temperature control of external equipment, whether in a close-loop application, or in an open-loop application such as a tank. Typical applications include calibration, bioreactors, rotary evaporators, condensers, sample/material testing and preparation. Front drainage port provides easy fluid release. Two different controller options allow you the flexibility to choose the right model for your requirements.Advanced 150 Controller (AC 150) features five user settable programs for easy recall from –28 to 150°C. Modify your display by choosing from multiple languages, temperature resolution of 0.1 or 0.01°, and temperature display in Celsius, Fahrenheit, or Kelvin. Remote sensor and refrigeration port.
Specifications
Reservoir Capacity (L)30
Max Temperature (° C)100
Min Temperature (° C)-10
Cooling Capacity At 20° C (watts)250
Pump TypeForce and suction
Max Flow Rate (L/min)20
Max Pump Pressure (PSI)11.7
Max Pump Pressure (mbar)805
Low-Level CutoffYes
High-Temperature CutoffYes
Working Area Width (in)11 3/4
Working Area Length (in)14 5/16
Working Area Depth (in)7 7/8
Heater Wattage (watts)1200
Temperature Sensor100 Ω Pt RTD
Drain ValveYes
Wetted MaterialsSS
Power (VAC)115
Power (Hz)60

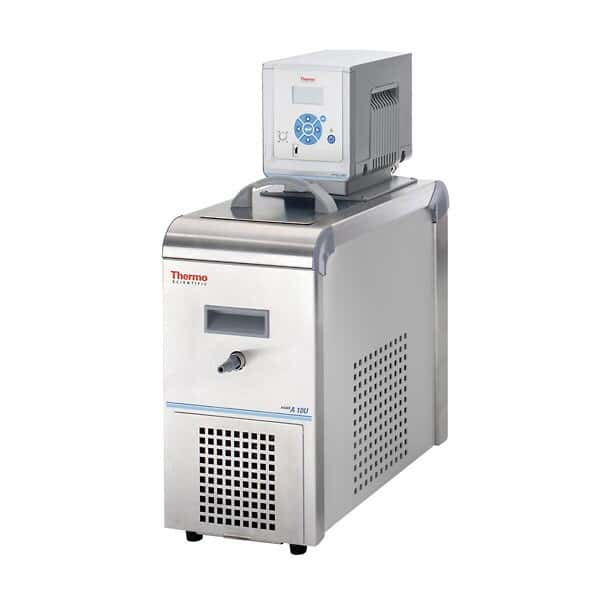

Description17-30L Circulating Bath, -10 to 100C, 115V
