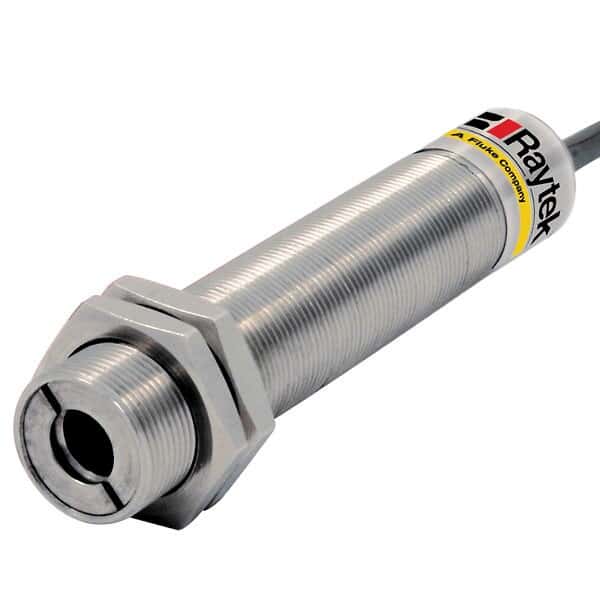

Raytek Infrared Temperature Sensor, Fixed Mount, 30 to 500°C (86 to 832°F)

Raytek Infrared Temperature Sensor, Fixed Mount, 30 to 500°C (86 to 832°F)
Zoom Image
Representative image only.
Add to Compare

Raytek Infrared Temperature Sensor, Fixed Mount, 30 to 500°C (86 to 832°F)

Raytek | Mfr: RAYCI1B| Item: 3966050

Compact and durable integrated IR sensor—perfect for industrial applications

¥4,829.93CNY / Each
Add To Cart
+ADD TO LIST

PRODUCT OPTIONS

See All 2 Items in this Product Family

¥4,829.93CNY / Each
Add To Cart
Product Description

Key Features

  • 4:1 distance to spot ratio
  • Fixed emissivity at 0.95
  • Type J thermocouple output
  • IP65-rated housing
  • 1 m (3.3 ft) long cable
  • Use to measure temperatures from 30 to 500°C (86 to 832°F)
  • 2 year warranty

More About this Item

IR temperature sensors feature a standard 4-wire system to easily replace traditional contact probes with a type-J thermocouple output. A rugged IP65-rated stainless steel housing provides withstands temperatures up to 70°C (160°F) without cooling.

Two year warranty
Specifications
  • Distance To Target Size Ratio (D:S)4:1
  • Emissivity0.95
  • Min Temperature (° F)86
  • Max Temperature (° F)832
  • Min Temperature (° C)30
  • Max Temperature (° C)500
  • Accuracy100 to 500ºC (212 to 932ºF): larger of ±2% or ±3º C (±6ºF)30 to 99ºC (86 to 211ºF): ±6ºC (±10ºF)
  • Probe Max Temperature (° F)160
  • Probe Max Temperature (° C)70
  • OutputType J thermocouple
  • Power (VDC)12 to 24
  • DescriptionInfrared Temperature Sensor, Fixed Mount, 30 to 500°C (86 to 832°F)
  • Warranty2 year
