Bath cover and lid, drain valve, fittings,nylon hose barb adapters for 3/8", 1/4", and 3/16" tubing, plumbing tape, clamps, drain tubing, instruction manual, and power cord.
Key Features
Waterproof control panel swivels 180°
Extra-large backlit digital display can be easily seen from across a room
Color touch-screen models feature programmability and computer communication
Performance digital controller
28L bath capacity
-30 to 200 °C temperature range
120 VAC operation
2 year warranty
More About this Item
The unique WhisperCool™ environmental control system features part-load sound levels below that of conventional speech at a distance of two meters. This innovative environmental technology also optimizes compressor and evaporator performance, reducing overall energy consumption and prolonging compressor life. The front-mounted drain port and washable air filter simplify cleaning and maintenance. The chemical-resistant DuraTop™ top plate remains cool at high temperatures and is easily cleaned. Rear inlet/outlet ports also allow use in external process applications.
Performance Digital Controller utilizes sensitive, icon-driven touchscreen so you can scroll through menus, functions, and options—even when wearing gloves. Display allows easy monitoring of set value, actual value, and temperature trend information. View screen text in 11 languages. Remote temperature sensing and control allow precision management of external baths and devices. Serial, USB, and Ethernet communication. Includes Enhanced Performance Hardware & Software Package (Pt100 temperature probe, USB flash drive for data logging, stainless steel fittings and tubing adapters, PolyScience LabVIEW™ Virtual Instrument, iPhone® application download).
Specifications
Reservoir Capacity (L)28
Max Temperature (° C)200
Min Temperature (° C)-30
Cooling Capacity At 0° C (watts)505
Cooling Capacity At 20° C (watts)915
Pump TypeForce and suction
RefrigerantR-404a
Max Flow Rate (L/min)20.1
Max Pump Pressure (PSI)4.3
Low-Level CutoffYes
High-Temperature CutoffYes
Width (in)18
Length (in)26 1/2
Height (in)26 29/32
Depth (cm)14
Working Area Width (in)14 1/8
Working Area Length (in)12 23/64
Working Area Depth (in)5 1/2
Heater Wattage (watts)1100
Temperature ControlPID
Temperature Sensor100 Ω Pt RTD
Suction PumpYes; 14.7 LPM Max
Port Connections¼" NPT(F)
Drain ValveYes
InterfaceUSB-A & B, Ethernet, RS-232, RS-485, remote on/off, and external temperature probe
Power (VAC)115
Power (Hz)60
Power (amps)13

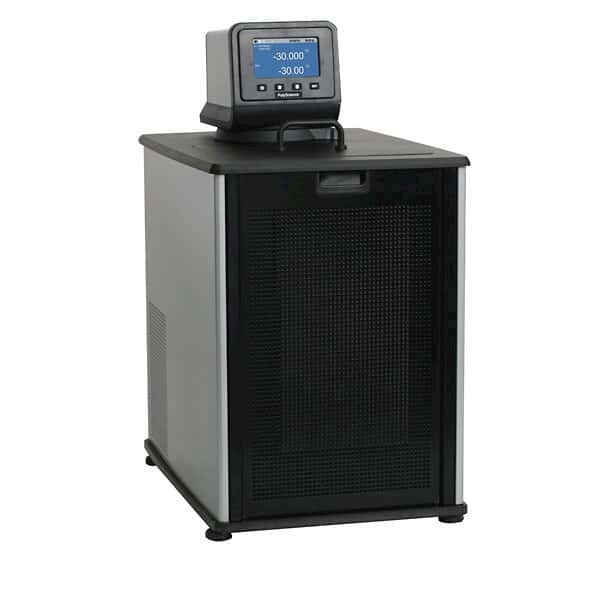

DescriptionPerformance Digital 28L Recirculating Bath, -30 to 200 °C, 120V/60Hz
