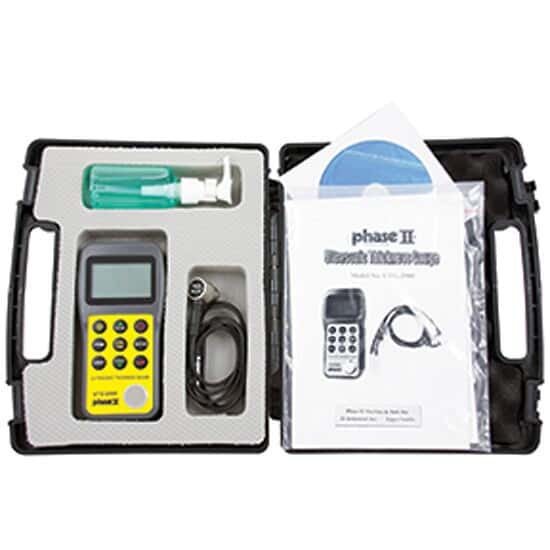

5 MHz dual-sensor transducer probe, software, USB cable, bottle of coupling gel, carrying case, two AA batteries, and calibration document supplied by the manufacturer.
Key Features
Upgraded version of the popular UTG-2800 — nearly doubling the range and capacity
Packed with features typically found only on high-end models
Stores up to 20 groups of memory (100 files per group)
Upper and lower limit preset alarms
Easy-to-read, 4.5-digit LCD with backlight display
USB connectivity to printer or PC
4 Hz update frequency range
5 year warranty
More About this Item
Phase II has almost doubled the range and capability of their most popular digital thickness gauge, the UTG-2800, and designed the UTG-2900. This tester uses sonar technology to can measure thickness from 0.025" to 23" for uncoated items in pulse-echo mode, and 0.118" to 2.35" for coated surfaces in echo-echo mode. This gauge works to measure the thickness of metallic and nonmetallic materials such as steel, aluminum, titanium, plastics, ceramics, glass, and any other good ultrasonic wave conductor, as long as it has parallel top and bottom surfaces. The multifunctional meter provides basic measurement, scanning, adjustable sound velocity, USB output, and extended storage capabilities for additional flexibility. The highly innovative gauge design features an intuitive interface that makes setup and operation easy. Simply calibrate the meter with the integrated calibration block and begin taking measurements. Unit accurately displays measurement results in either inch or millimeter.
Specifications
Range0.025" to 23" (0.64 to 584.2 mm) pulse-echo, 0.118" to 2.35" (3 to 59.69 mm) echo-echo
