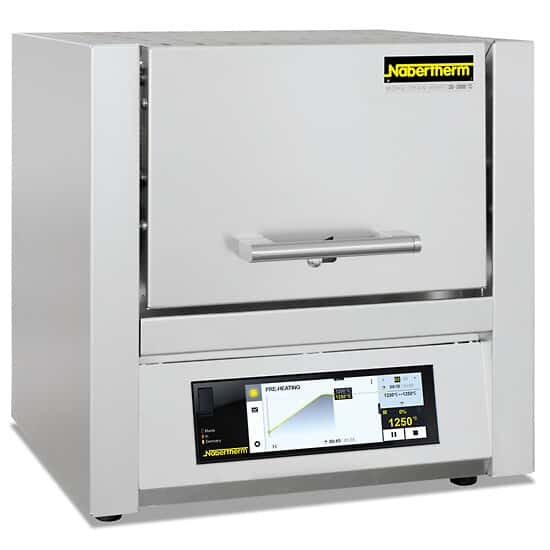

Nabertherm LT 9/13 High-Temperature Muffle Furnace with C550 Controller, 9L, 240V

Representative image only.

Nabertherm LT 9/13 High-Temperature Muffle Furnace with C550 Controller, 9L, 240V

Nabertherm | Mfr: L-094T3ON3-240| Item: 3333523

Reach 1300°C with lightweight refractory brick insulation

¥164,587.95CNY / Each

Time to Re-Calibrate Your Instrument?
Learn more about our calibration services

¥164,587.95CNY / Each

Buy It Together

Current Item

Nabertherm LT 9/13 High-Temperature Muffle Furnace with C550 Controller, 9L, 240V
Nabertherm LT 9/13 High-Temperature Muffle Furnace with C550 Controller, 9L, 240V
3333523

¥164,587.95CNY / Each
+ =
Total Price 164587.95 ADD 2 ITEMS TO CART
Product Description

Includes

6 1/2-ft (1.9-m) power cord with standard NEMA plug.

Key Features

  • Achieve short heating times due to heating elements on support tubes radiating freely into chamber
  • Hot air is expelled through exhaust outlet in the rear wall of the furnace
  • Dual shell housing for low external temperature
  • Adjustable air inlet integrated into door
  • 1 year warranty

More About this Item

Furnaces feature a digital controller offering program and segment control with a clear blue-white LCD showing operating parameters. Vertical lift door provides full access to the chamber while keeping the hot surface away from the operator. Solid-state relays provide quiet operation.

1 Year Warranty
Specifications
  • Capacity (Liters)9
  • Chamber Width (in)9
  • Chamber Height (in)6 11/16
  • Chamber Depth (in)9 7/16
  • Max Temperature (° F)2372
  • Max Temperature (° C)1300
  • Temperature Control Accuracy±1⁰C
  • Rise Time50 minutes
  • Overall Width (in)18 7/8
  • Overall Height (in)22 1/2
  • Overall Depth (in)21 5/8
  • Power (VAC)240
  • Power (Hz)50/60
  • Heater Wattage (watts)3000
  • DescriptionHigh-Temperature Muffle Furnace with C450 Controller, 549 cu.in., 240V
  • Warranty1 Year
