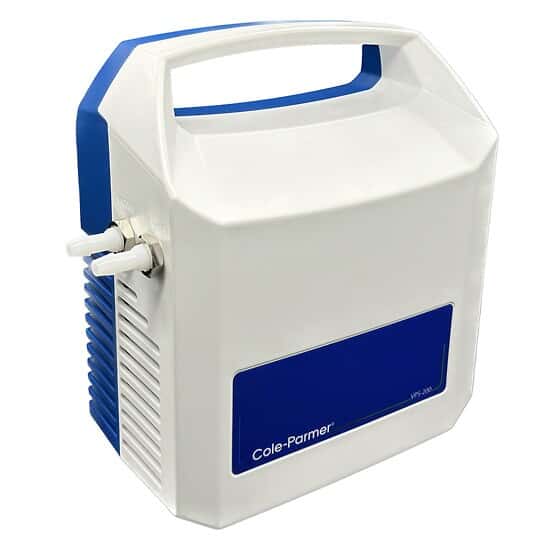

Cole-Parmer VPS-200 Air Admiral Air Diaphragm Vacuum/Pressure Pump, 0.31 cfm; 230 VAC

Cole-Parmer | Item: 7920205

Compact size and integral handle make pump easily transportable

  • Economical vacuum pump serves as pressure or vacuum source with an excellent price to performance ratio ... READ MORE

¥4,077.95CNY / Each
Add To Cart
+ADD TO LIST

PRODUCT OPTIONS

See All 4 Items in this Product Family

¥4,077.95CNY / Each
Add To Cart

Buy It Together

Current Item

Product Description

Includes

Six-ft (1.8-m) cord with European plug.

Key Features

  • Economical vacuum pump serves as pressure or vacuum source with an excellent price to performance ratio
  • Low-friction piston runs cool and quiet for a long service life with a consistent performance
  • 3 year warranty

More About this Item

This portable vacuum pump is designed for versatility with a tough, lightweight plastic housing and integral carrying handle. The long-wearing motor delivers performance characteristics suitable for a wide range of applications.

Note: Do not pump liquids or immerse pump. Avoid organic, basic, and acidic vapors.

Please Note: Effective April 2023, the Air Admiral Air Diaphragm Vacuum/Pressure Pump has now been rebranded Cole-Parmer under model umber VPS-200. All the same great features and specifications, just with a new and improved look.

Conformite Europeenne3 Year Warranty
Specifications
  • Wetted PartsGlass-filled PA66, Gas phase Rubber , PTFE, TPU, Acetal
  • Free-Air Capacity (CFM)0.31
  • Free-Air Capacity (LPM)8.8
  • Free-Air Capacity (LPH)526.7
  • Max Flow Rate (CFM)0.31
  • Max Flow Rate (Liters/min)8.8
  • Max Pressure (PSI)33
  • Max Pressure (bar)2.27
  • Max Vacuum (in Hg)21.3
  • Max Vacuum (mbar)721.3
  • Max Vacuum (mm Hg)541
  • Max Vacuum (torr)541
  • Port Size1/4" hose barb
  • Max Temperature (° F)104
  • Max Temperature (° C)40
  • Duty CycleContinuous
  • Power (VAC)230
  • Power (amps)0.8
  • Power (Hz)50
  • Motor TypeShaded pole
  • Shipping Weight (kg)1.6
  • Shipping Weight (lbs)3.5
  • Height (in)8.47
  • Width (in)4.3
  • Length (in)7.25
  • Height (cm)21.53
  • Width (cm)10.92
  • Length (cm)18.42
  • Height (mm)215.3
  • Width (mm)109.2
  • Length (mm)184.2
  • Motor hp1/11.5
  • DescriptionAir Diaphragm Vacuum/Pressure Pump, 0.31 cfm; 230 VAC
  • Warranty3 Years
