Calibration loop, hard carrying case, and four 1.5 V AA batteries. Model 6417 also includes a Bluetooth® USB adapter, quick start guide, and a USB stick with DataView software.
Key Features
Test frequency selection increases accuracy in inductive environments
Touch voltage indication sounds a warning buzzer and displays an icon to caution you of dangerous conditions
Loop resistance function alerts that measurement may not be ground resistance for added safety
Model 6417 displays stored measurements on the display or wirelessly, up to 30 feet (9 meters), by Bluetooth® connectivity to PC or Android™ based mobile application
1 year warranty
More About this Item
These ground resistance testers measure ground rod, grid resistance, and impedance without using auxiliary rods and are designed for use in multi-grounded systems without disconnecting or de-energizing the ground system under test. Testers are also used to measure resistance and continuity of grounding loops around pads and buildings. High-sensitivity measurement function enables measurement of leakage current flowing to ground or circulating in ground loops from 0.2 mA to 40 A and resistances from 0.01 to 1500. Model 6417 includes PC based DataView softwared providing the ability to configure and retrieve data through Bluetooth communication and report generation capability. Use the Android™ based app with model 6417 for configuring, downloading, printing and emailing test results from your tablet or smartphone. The GPS capability in your device provides the ability to easily locate the site associated with the measurements.
Specifications
Min Resistance (ohms)0.01
Max Resistance (ohms)1500
Max Ground Current Range (amps)40
Battery Type (VAC)4 AA (included)
Length (in)10 5/16
Height (in)3 3/4
Length (cm)5.5
Height (cm)9.5
Width (cm)26.2

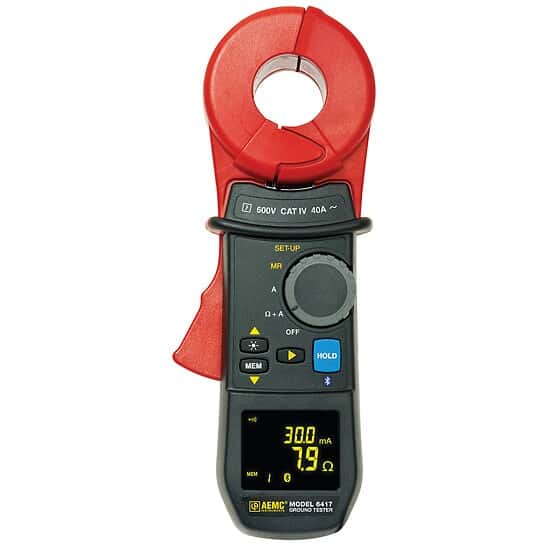

DescriptionGround Resistance Tester with Bluetooth, Alarm and Memory
