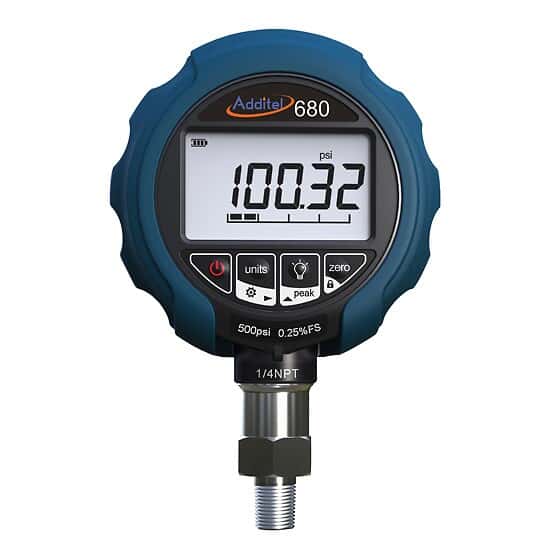

Additel 680A Digital Pressure Gauge with Bluetooth® and RS-232, 0 to 25,000 psi

Additel 680A Digital Pressure Gauge with Bluetooth® and RS-232, 0 to 25,000 psi
Zoom Image
Representative image only.
Add to Compare

Additel 680A Digital Pressure Gauge with Bluetooth® and RS-232, 0 to 25,000 psi

Additel | Mfr: ADT680A-20-GP25K-PSI-AM| Item: 6841046

No need to remove gauge from service to download data

  • Built-in Bluetooth® capability and RS-232 interface ... READ MORE

¥40,585.59CNY / Each
Add To Cart
+ADD TO LIST

PRODUCT OPTIONS

See All 8 Items in this Product Family

for an additional
¥3,461.90CNY / Each
for an additional
Call For Price
Time to Re-Calibrate Your Instrument?
Learn more about our calibration services

¥40,585.59CNY / Each
Add To Cart

Buy It Together

Current Item

Additel 680A Digital Pressure Gauge with Bluetooth® and RS-232, 0 to 25,000 psi
Additel 680A Digital Pressure Gauge with Bluetooth® and RS-232, 0 to 25,000 psi
6841046

¥40,585.59CNY / Each
+ =
Total Price 44047.49 ADD 2 ITEMS TO CART
Product Description

Includes

Three AA batteries and NIST traceable calibration supplied by the manufacturer.

Key Features

  • Built-in Bluetooth® capability and RS-232 interface
  • Communicate with your computer wirelessly from up to 20 m (66 ft) away
  • Excellent durability—IP67-rated housing and drop-tested from of 1 m (3 ft)
  • Large, backlit 5-digit LCD display shows pressure, % of full-scale graph, and temperature
  • Up to 4000 hours of battery life
  • Comes with an autoclavable M-250-C high-pressure process connection
  • 0 to 25,000 psi range
  • 1 year warranty

More About this Item

Additel 680A digital pressure gauges use an advanced technology microprocessor and are aged, tested, and screened before assembly. Download Additel Link App to your mobile device to view real-time pressure reading and status, configure gauge parameters, switch pressure units, pressure zero, start/stop data log, download and view data from the gauge, calibrate pressure gauges and export CSV data using Bluetooth®. Easily navigate the menu using the three function buttons. A simple push of a button changes the unit of measure, displays minimum or maximum value, zeroes the display, turns on/off Bluetooth®, and more.

1 Year WarrantyConformite EuropeenneIP 67
Specifications
  • Accuracy±0.2% full-scale
  • Dial Size (in)4.125
  • Dial Size (mm)105
  • Min Pressure (PSI)0
  • Max Pressure (PSI)25000
  • Min Temperature (° F)14
  • Max Temperature (° F)122
  • Min Temperature (° C)-10
  • Max Temperature (DegreeC)50
  • Wetted Materials316 stainless steel, copper
  • Case304 stainless steel
  • Lens MaterialPolycarbonate
  • Process Connection1/4HP male: Autoclavable M-250-C, 9/16" - 18 UNF-2A
  • Unit Of MeasurementPa, kPa, MPa, psi, bar, mbar, kgf/cm2, %, inH2O@4°C, mmH2O@4°C, inHg@0°C, mmHg@0°C
  • Display4 or 5 digit (switchable)
  • Battery Type3 AA (included)
  • Battery LifeUp to 4000 hrs at 3 readings/sec; Low power mode: up to 18,000 hrs at 1 reading/10 sec (pressure sensor powers off after each sampling in this mode)
  • OutputBluetooth® and RS-232
  • Enclosure RatingIP67
  • Depth (in)1 13/16
  • Height (in)5 7/8
  • Width (in)4 1/8
  • Depth (cm)4.65
  • Height (cm)14.9
  • Width (cm)10.5
  • DescriptionDigital Pressure Gauge with Bluetooth® and RS-232, 0 to 25,000 psi
  • Warranty1 year
