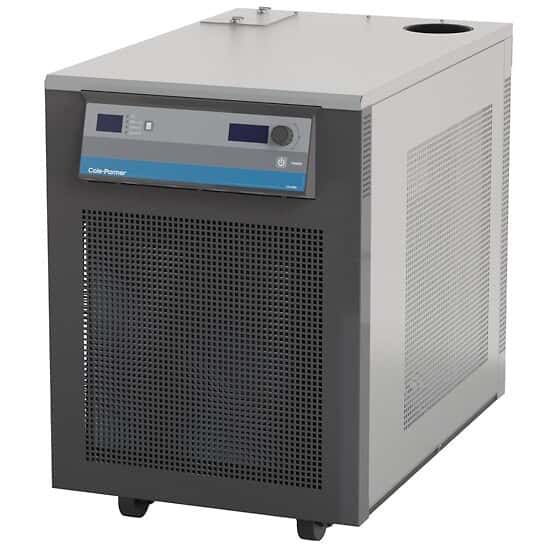

Cole-Parmer CH-400 Air-Cooled Portable Industrial Chiller; 5 to 35°C, 13.2 L/min; 230 VAC, 60 Hz

Name: Cole-Parmer CH-400 Air-Cooled Portable Industrial Chiller; 5 to 35°C, 13.2 L/min; 230 VAC, 60 Hz
Brand: Cole-Parmer
SKU: 2087292
Price: 213069.79 CNY
Availability: OutOfStock

Zoom Image

Representative image only.

Add to Compare

Cole-Parmer CH-400 Air-Cooled Portable Industrial Chiller; 5 to 35°C, 13.2 L/min; 230 VAC, 60 Hz

Cole-Parmer | Item: 2087292

Chill lasers, electron microscopes and other instruments demanding fluid cooling

High capacity in a robust-yet-compact design ... READ MORE

¥213,069.79CNY / Each

Add To Cart

+ADD TO LIST

PRODUCT OPTIONS

See All 2 Items in this Product Family

Include Calibration Services

Cole-Parmer Service by AL-TAR On-Site Bath and Circulator Preventive Maintenance and Calibration

for an additional

Call For Price

Time to Re-Calibrate Your Instrument?
Learn more about our calibration services

Product Description

Includes

Removable power cord with plug.

Key Features

High capacity in a robust-yet-compact design
Chilling-specific, intelligent controller provides fault condition warnings
Easy to use and maintain
Features a positive displacement pump and operates on 230 VAC, 60 Hz
3 year warranty parts & labor

More About this Item

Choose a sleek portable chiller engineered to accommodate laboratory and industrial process fluid cooling applications. Quickly access the reservoir, filters and all internal components. Temperature is displayed in conjunction with pressure or flow rate on easily visible LED; adjustable alarms enhance user monitoring. Ozone-friendly and air-cooled.

Specifications

Reservoir Capacity (L)13.25
Max Temperature (° C)35
Min Temperature (° C)5
Temperature Stability (° C)±0.5
Cooling Capacity At 10° C (watts)4420
Cooling Capacity At 20° C (watts)5200
Pump TypePositive displacement
RefrigerantR-134a
Max Flow Rate (L/min)13.2
Max Pump Pressure (PSI)100
High-Temperature CutoffYes
Width (in)19
Height (in)26
Depth (in)30 1/2
Width (cm)48
Height (cm)66
Depth (cm)78
Compressor Horse Power (hp)1.5
Port Connections1/2" NPT(F)
Display TypeLED
Power (VAC)230
Power (Hz)60
Power (amps)21.1
DescriptionAir-Cooled Portable Industrial Chiller; 5 to 35°C, 13.2 L/min; 230 VAC, 60Hz
Warranty3 Years
